Category: EPS Foam Cutting Machines, EPS Moulding Machine

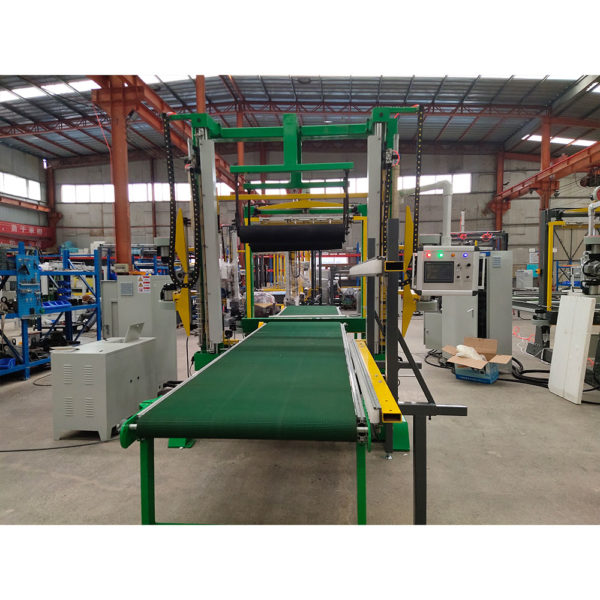

EPS Continuous Cutting Machine

CHARACTER:

1. Horizontal cut, vertical cut voltage are controlled by three set of transformer & regulator individually.
2. Cutting Speed changeable by frequency converters.
3. High PrecisionWire setting system (Patent Product, finish wire setting in 2 minutes. In China, only we have HIGH PRESION WIRE SETTING SYSTEM
4. keep double exhaust fan for control box

High Precison Wire setting sysiem(Patent Product,finish wire setting in 2 minutes.In China,only we have High Persion Wire Setting System,in other company,they have auto wier setting system,but after wire setting,they should manually check thickness again.)

Inquiry

    Share:

    Video

    Main Technical Parameters

    Item UNIT PARAMETER
    Suitable for block size  mm 2000-6000*1250*1000
    Capcity of cutting speed Pecs per hour 10-15 blocks
    Min. Cutting thickness  mm 10
    Cutting speed  m/min 0.5-1
    Max. Wires in horizontal piece 50
    Max. Wires in cross vertical piece 6
    Max. Wires in cross cutting  piece 15
    Hot wire specification  mm 0.4-0.8
    Connected load  Kw 18
    Weight  Kg 6500
    Contour size MM 20000~32000*2500*3000
    Stadard
    Function
    Block Tilter
    Automatic wire setting in Horizontal
    Oscilation cut in horizontal
    Oscillation cut in vertical
