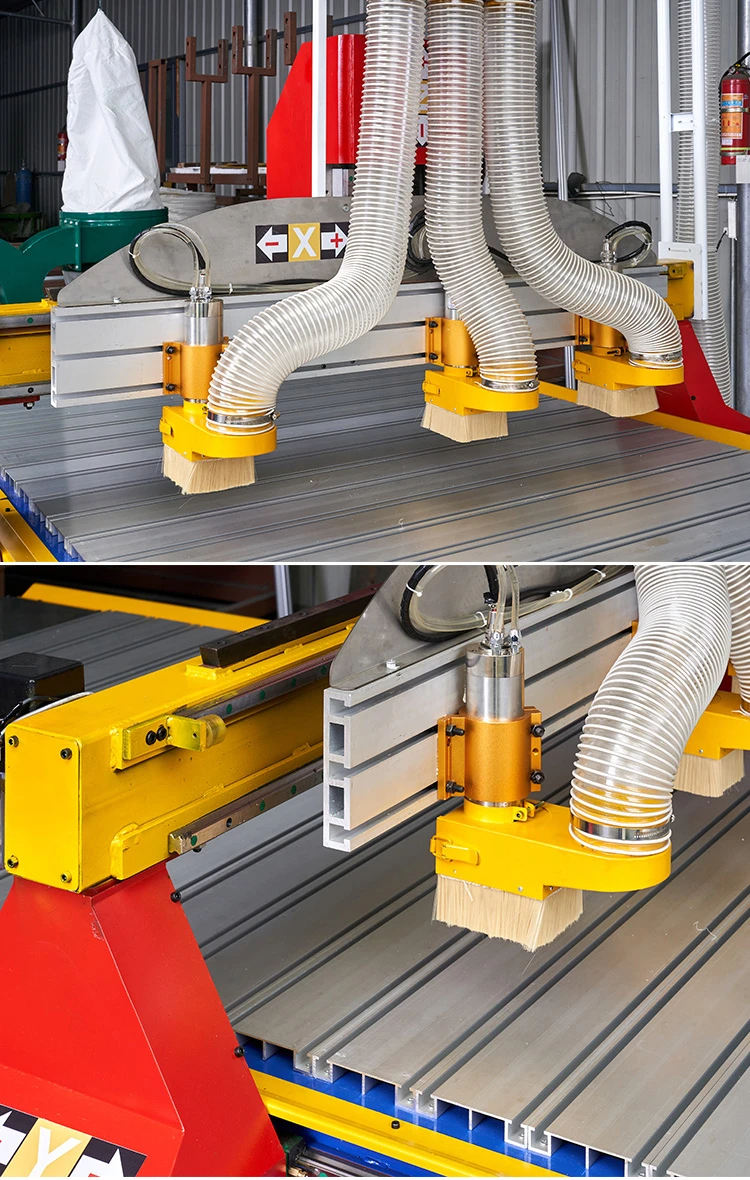

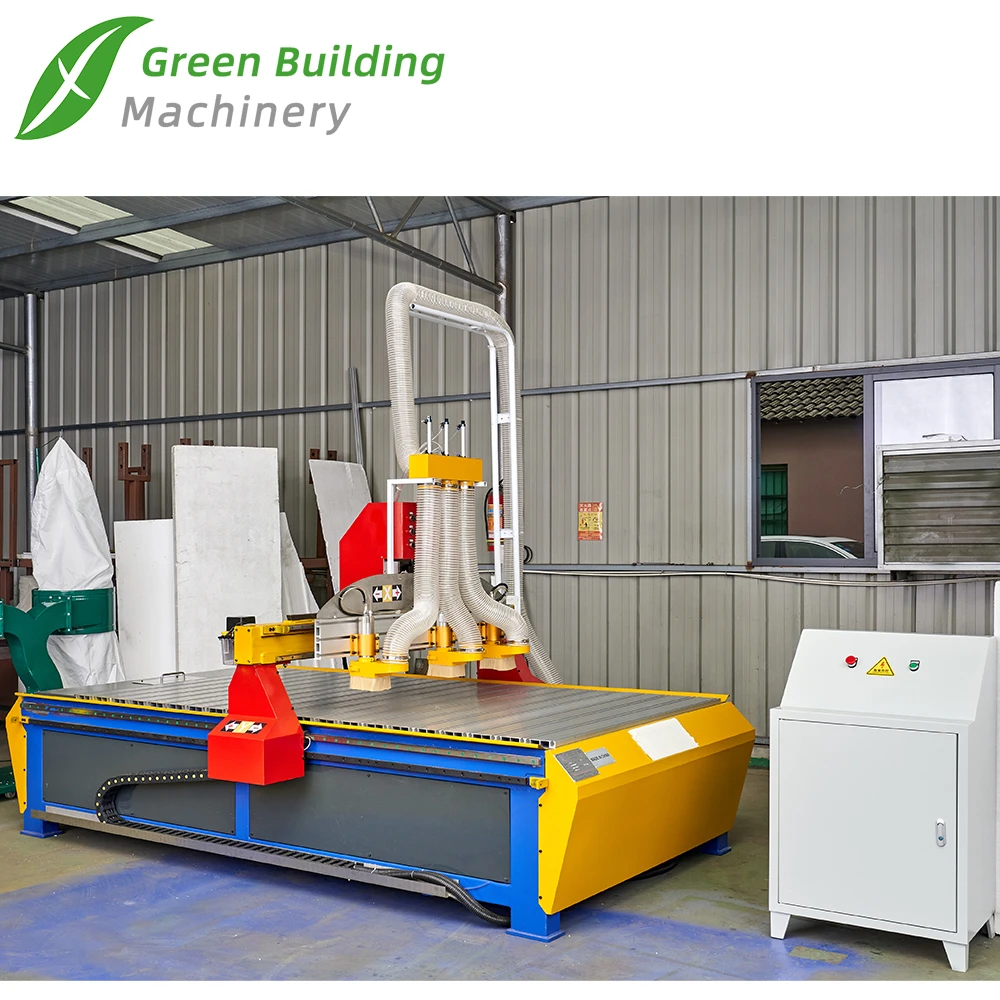

EPS CNC foam router Machine

Main features:

1. the overall structure of the lathe machine steel structure, good rigidity, stable operation, the whole machine vibration.
2. Z axis adopts high quality ball screw, linear guide, precision and durable.

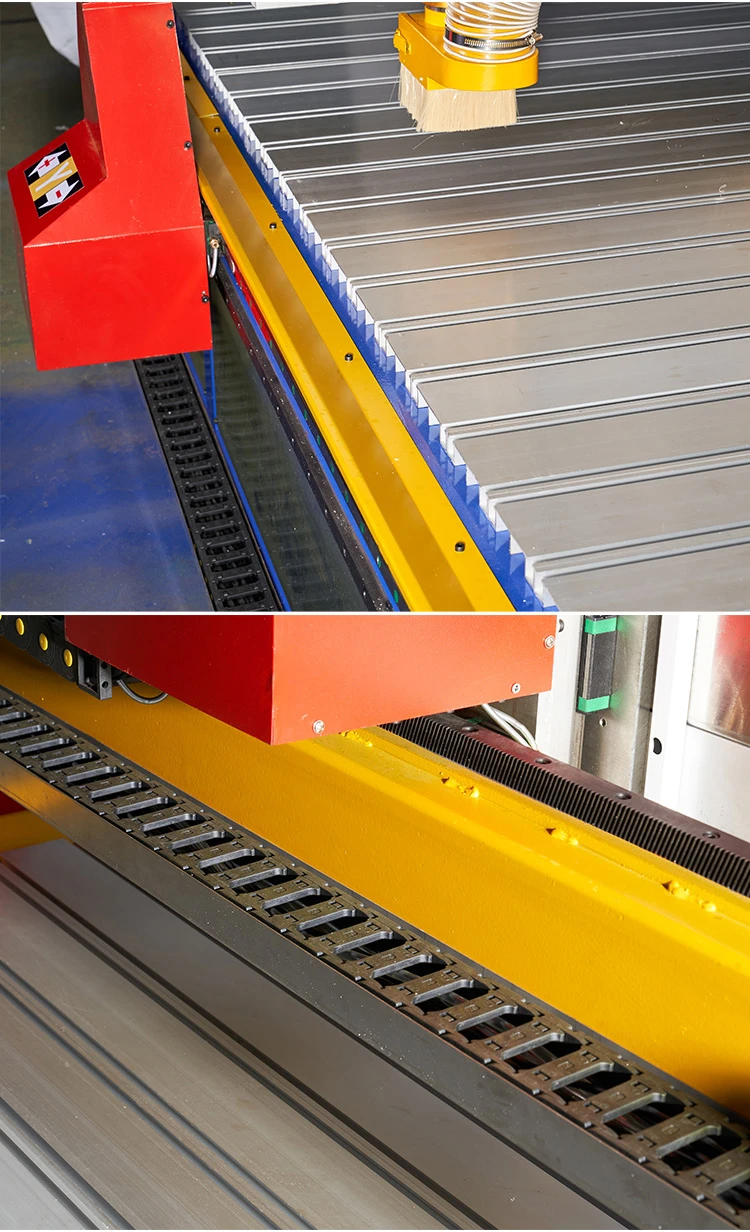

3. X.Y axis adopts rack drive, faster speed, better efficiency, save the cost of maintenance.

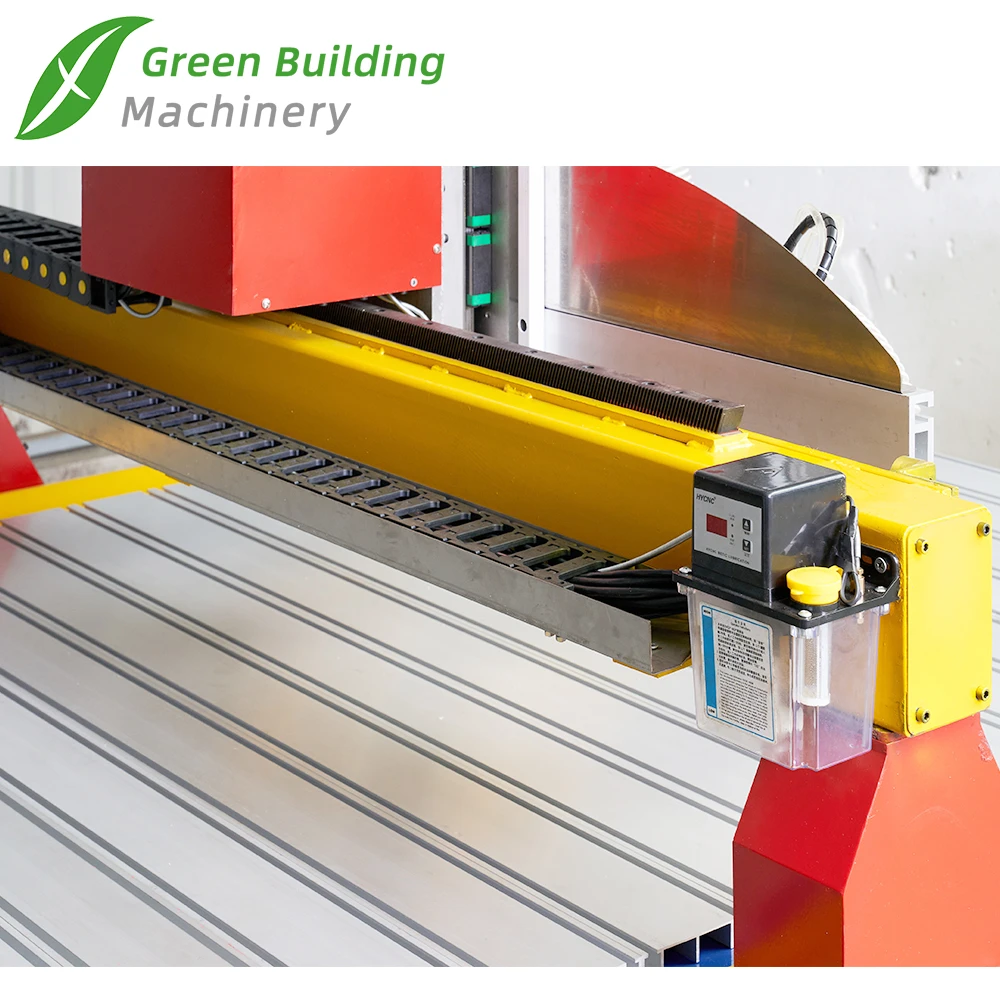

4. manual oil lubrication system, easy maintenance.
5. Y axis adopts double motor drive, select matching, to ensure smooth movement, long time running at high speed without deformation, no jitter;
6. strong compatibility, suitable for all kinds of CNC software: carving, type3, Wentai, CAD/CAM software can be light. Make a pine carved, embossed, and other works of art.

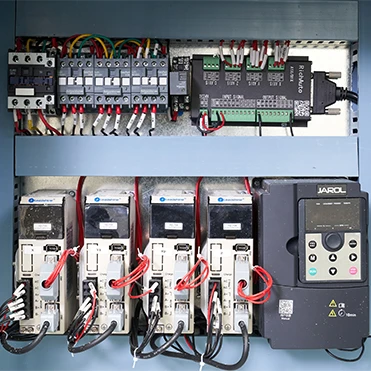

7. famous brand of constant power water-cooled motor and high performance inverter, good performance, high torque
8. more humanized design, whether it can greatly cut or carved handy.



    Main Technical Parameters

    Description Specification
    Model GB-EC1325
    XYZ Route 1300x2500x160mm
    Flat form size(L*W*H) 3200x2050x1700mm
    Machine Mechanism Integral steel structure
    Max feeding speed 16000mm/min
    XY Driving mode high precision gear
    Z Driving Mode ball screw
    XYZ shaft type guide linear guide
    Work-holding platen
    Repeatability precision 0.05mm
    Positioning precision 0.05mm
    Diameter for knife ф3.175/ф4mm/ф6mm/ф8mm/ф12.7
    Engraving code G code
    Applicable software Beijing jingdiao
    Graphic design software Beijing jingdiao
    Working voltage 380v 50HZ

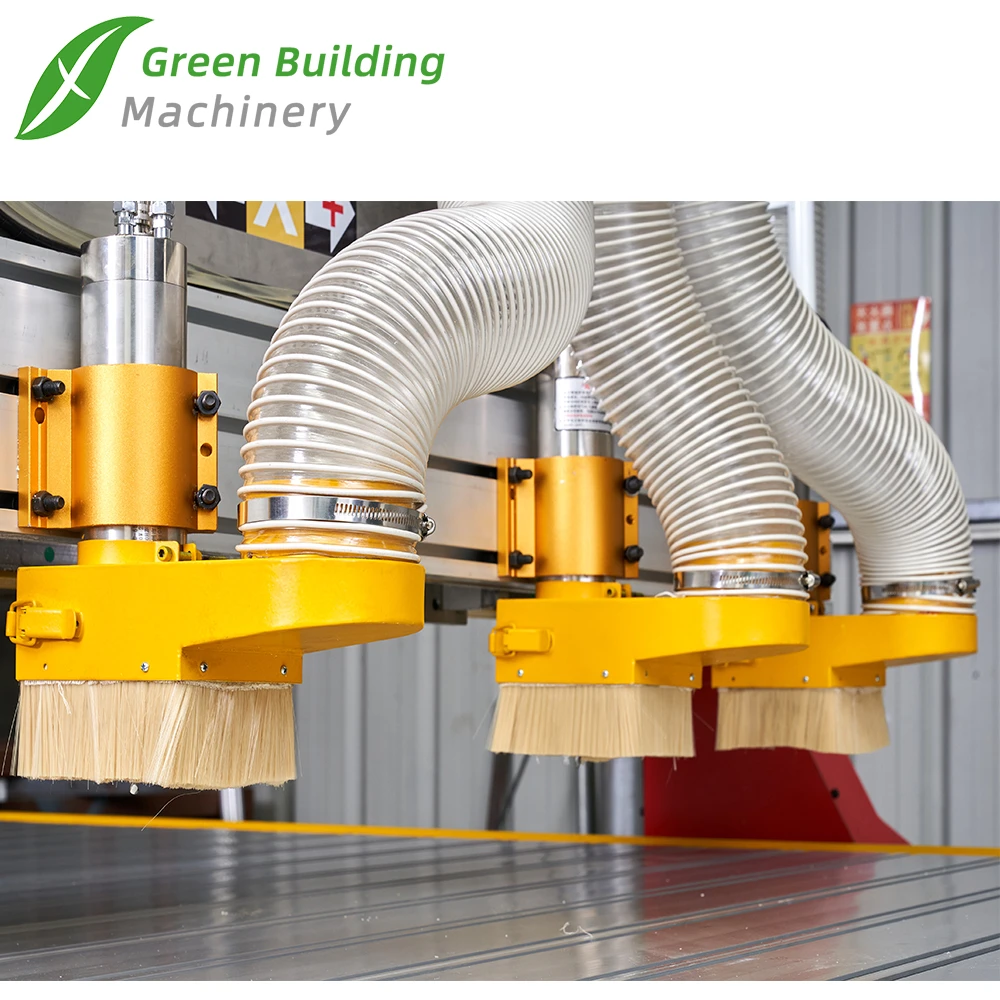

    Main shaft power 1.5kwWater cooled spindle

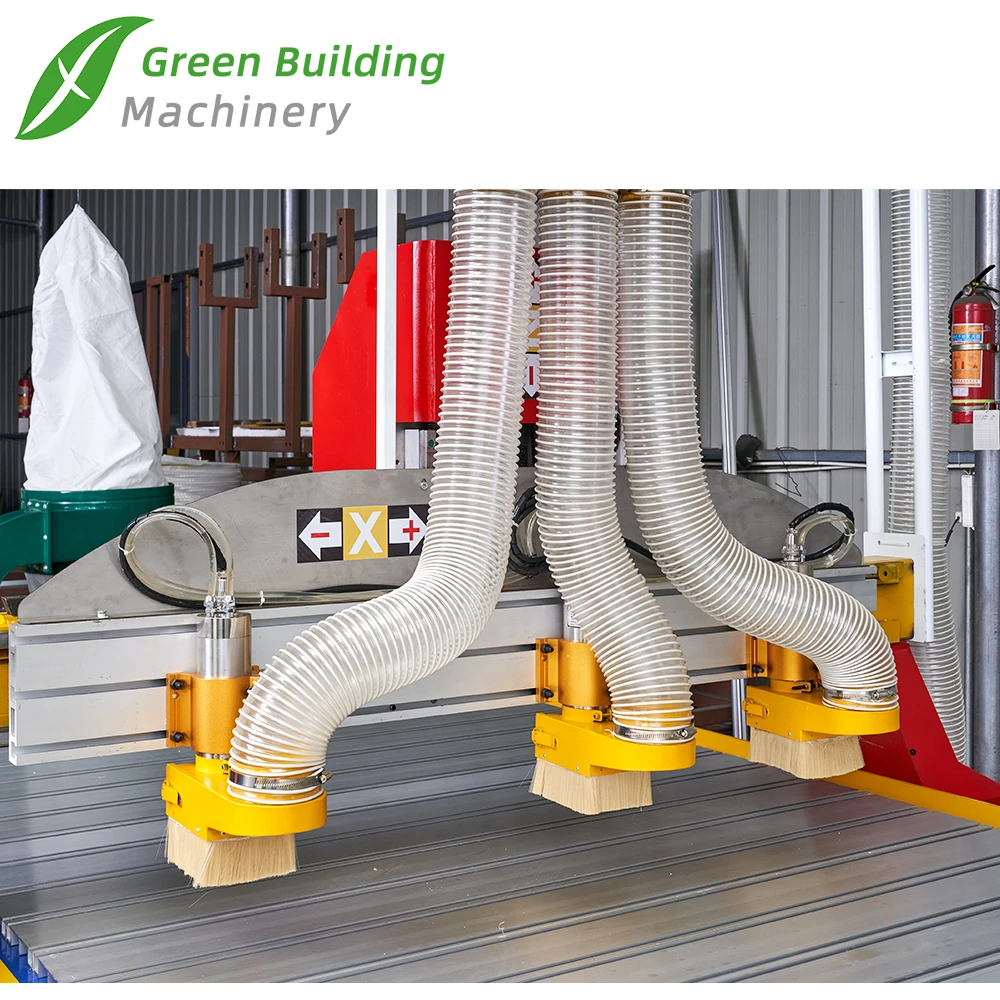

    (with 1~3 spindles)
    Main shaft speed 0-24000rpm
    Driving system JDPain
