Category: EPS Moulding Machine, EPS Pre-Expander Machine



– All procedures are controlled by Touch screen & PLC, all parameters can be revised in touch screen
– All material connected with EPS resin in expansion Chamber are made of SUS 304 Stainless steel
– High density Rock wool used for insulation layer to reduce temperature undulate & steam consumption.
– Steam system controlled by origin Japanese Pressure Reduction Valve, Brand “Yoshitake” GP-2000
– EPS Resin weight in Each cycle are controlled by accurate weight sensor for first expansion .
– Second Expansion is available for lower density
– Second expansion will be also controlled by weight sensor for more accuracy
-PID steam and PID air valve control Stable pressure & stable temperature ensure density tolerance within 3 %
– PID control for ventilation air for stable pressure and less steam consumption
– Use hot air for discharge material out of chamber for less beads broken rate , shrinkage and less steam consumption
– material discharge from bottom, instead of side door, Which will give less material lump and 100% discharge
– Control panel declaration:
d)All electronics are brand Schneider, Air condition is equipped for control box .

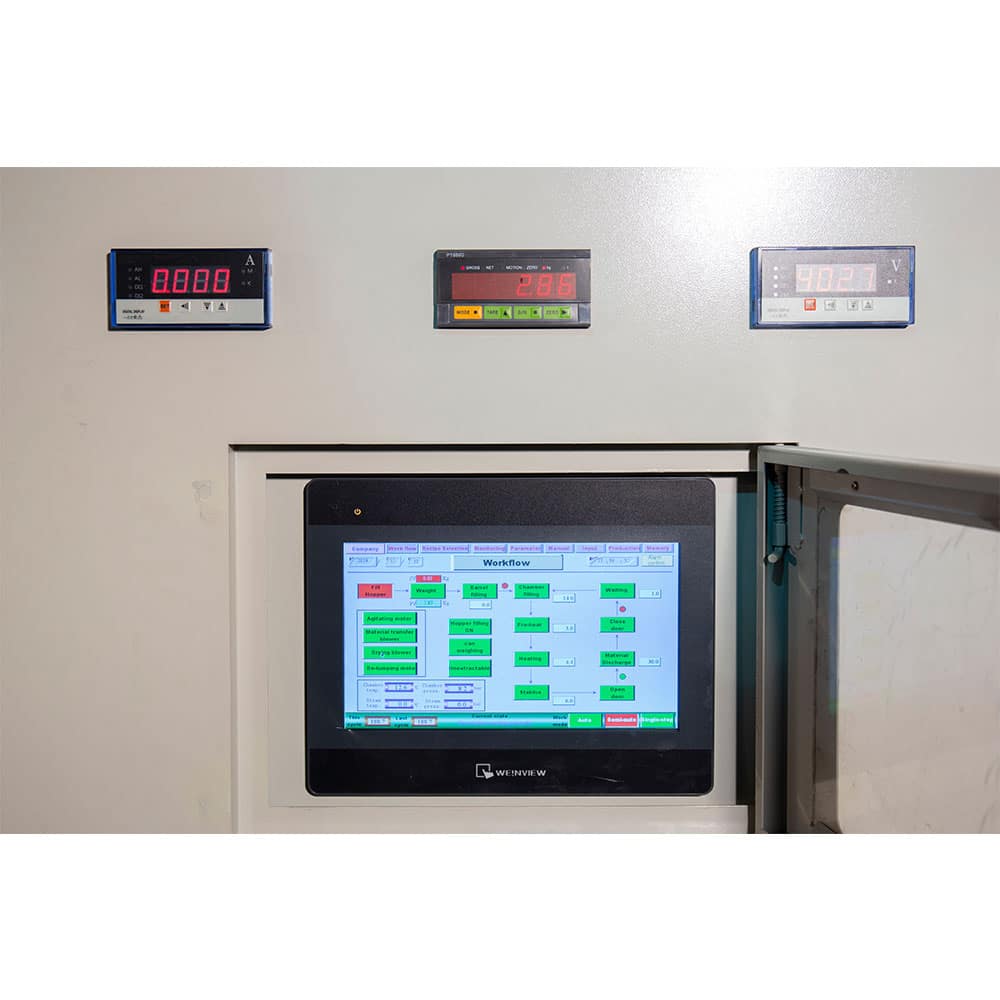

e)Japan Mitsubishi PLC and Taiwan veinview touch screen (10.1”)
f)pneumatic valves are brand Burket (Germany)
g)one level photo sensor for double safety
h)Use vibration level sensor to control heating of expansion .



    Main Technical Parameters

    Chamber diameter mm 1300
    Chamber height mm 1800
    Usable volume M3 1.6
    Capacity kg/h 500-1200
    First expansion
    (12~30g/l) 12g/l 500kg/h
    Secondary expansion
    (6.5~11g/l) 8g/l 430kg/h
    Tolerance ±3%
    Outer steam pressure Mpa 0.4-0.6
    Inner steam pressure Mpa 0.015-0.05
    Steam consumption (first) kg/h 0.6~0.8kg/kg raw matrial
    Inlet size mm DN65
    Outer air pressure Mpa 0.4-0.6
    Inlet size mm 40
    Air consumption m3/h 1.5
    Connected load kw 27.85
    Power supply v/hz 380/50
    Weight kg 6000
    Over size mm 7500×4150×4500
