EPS Automatic Block Cutting Machine

The SPC200-600 foam plastic cutting machine is suitable for processing various specifications of foam plastic plates with a length of 2000-6000, a width of 1300,and a height of 1300 or less. It is a specialized supporting equipment for producing large foam plastic panels for foam plastic product factories.Foamed plastic panels are widely used as insulation layers in buildings, refrigerated warehouses, transportation buses, and composite wall panels made of metal and cement mortar. They are widely used in buildings as insulation layers.

Contact Us

ping@cngreenindustry.com

Whatsapp: +86-18057925785

Specifications

Description	UNIT	SPC-200	SPC-300	SPC-400	SPC-600
Cutting Specifications	mm	2000×1300×1300	3000×1300×1300	4000×1300×1300	6000×1300×1300
Material And Model Of Electric Heating Wire	mm	Φ04 G20Ni8O	Φ04 G20Ni8O	Φ04 G20Ni8O	Φ04 G20Ni8O
Horizontal And Vertical Wire Hanging	pecs	30/10	30/10	30/10	30/10
Cut Off The Cutting Thread	pecs	10	10	10	10
Motor Power	KW	0.75	0.75	0.75	0.75
Horizontal Cutting Motor	KW	1.5	1.5	1.5	1.5
Cutting Speed Range	m/min	0~1	0~1	0~1	0~1
Transformer Capacity	25	25	25	25	25
Total Installed Power	Kw	26.5	26.5	26.5	26.5
Overall Size	mm	3500×2800×2780	4500×2800×2780	5500×2800×2780	7500×2800×2780
Machine Weight	Kg	1500	1800	2100	2700

Mechanical Characteristics

The part of the machine is welded with square tubes, solid structure ;
The machine adopts a double speed reducer with a large reduction ratio,equipped with two frequency converters,a round steel guide rail and a main and auxiliary guide wheel structure to ensure smooth operation and free speed regulation; good strength, and simple appearance;

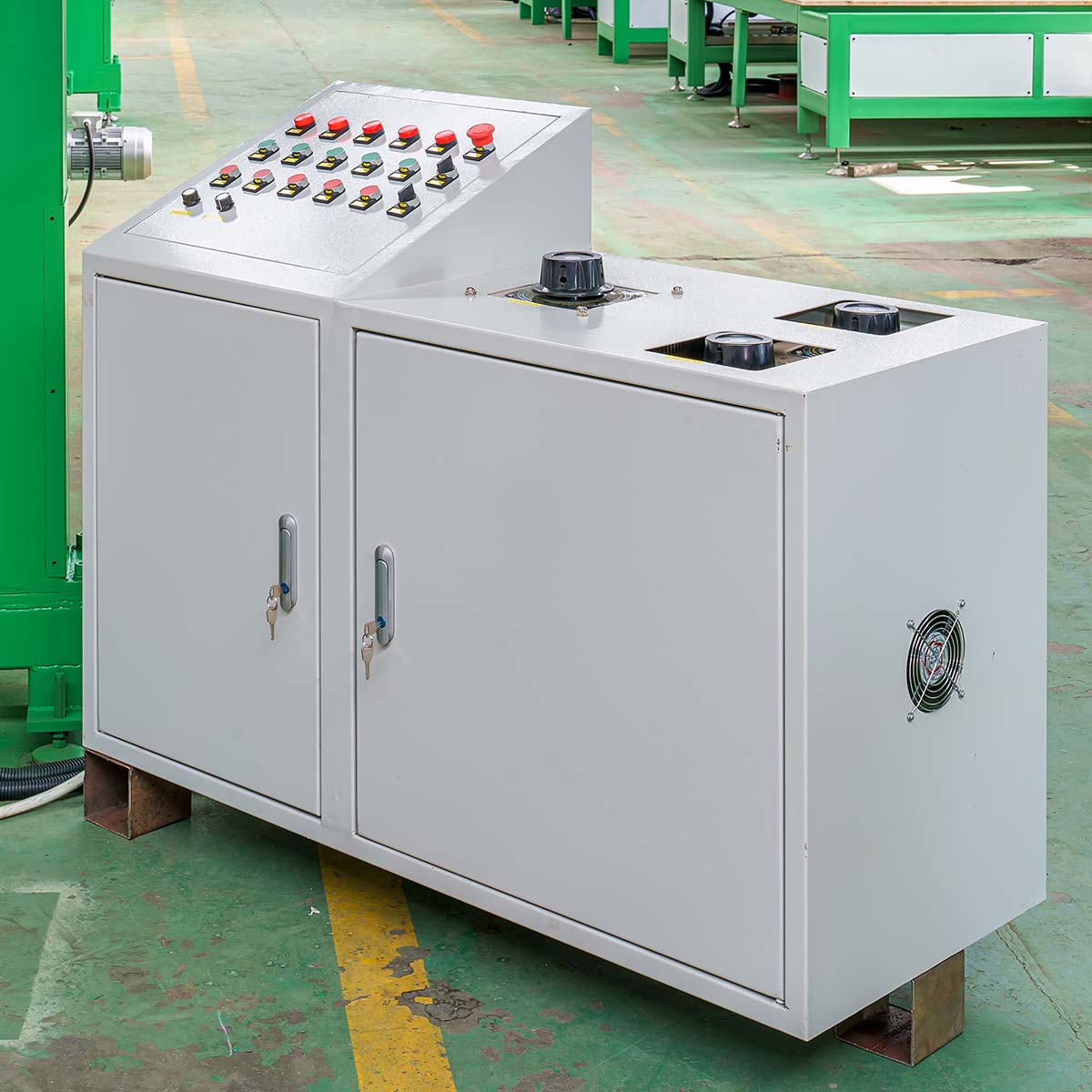

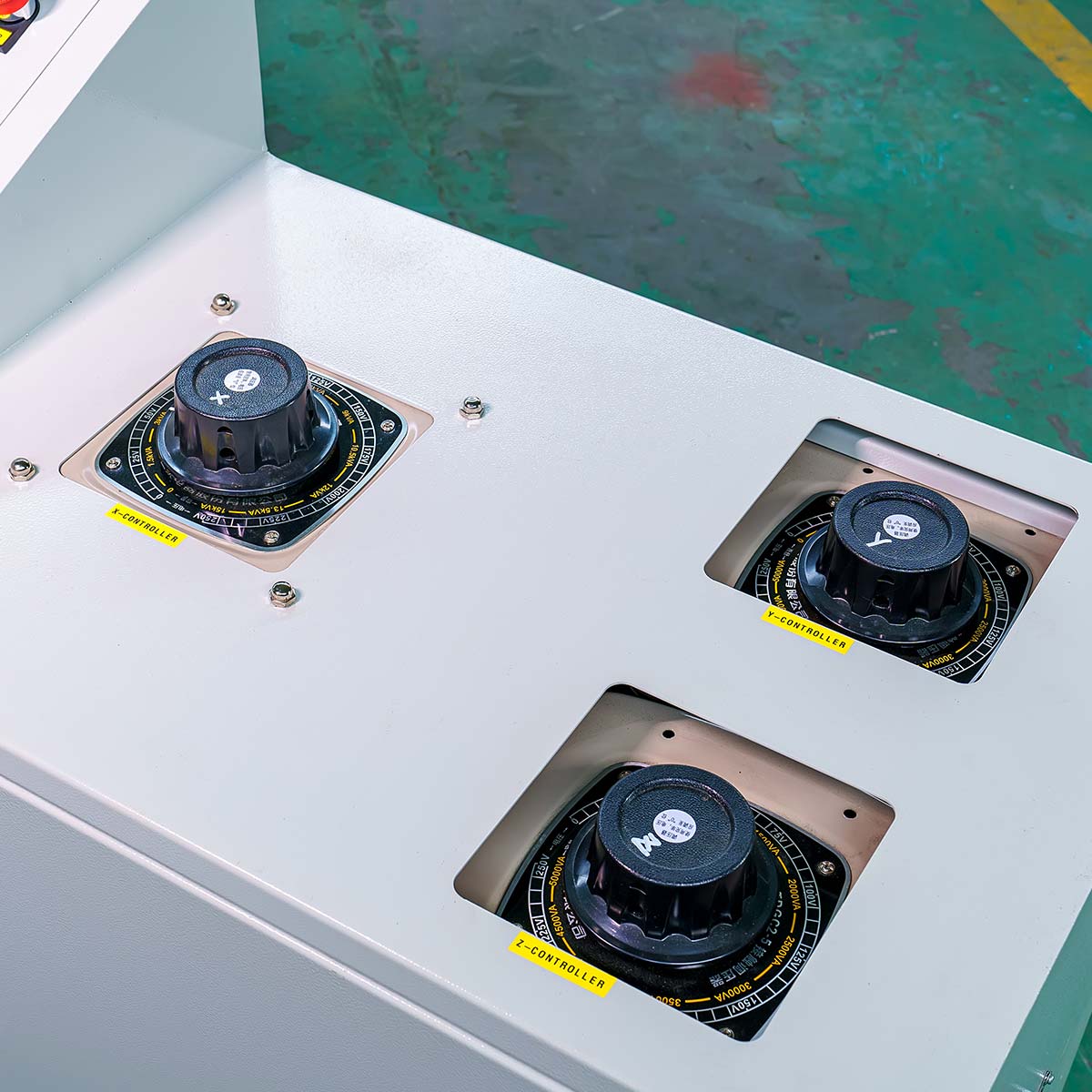

Voltage regulation: This machine is equipped with one 15KW and two 5KW transformers, which can cut in horizontally, vertically, and cross direction.The voltage output is adjustable from 0 to 220V through electronicvoltage regulation.Can set up to 30 wires in horizontally, and 10 wires in in cross vertical;
This machine uses key input. The cutting speed is adjustable,and the max movement speed is 2500mm/min. At the same time,the device has a stroke protection function, which automatically protects and stops when the movement stroke exceeds the specified stroke.
