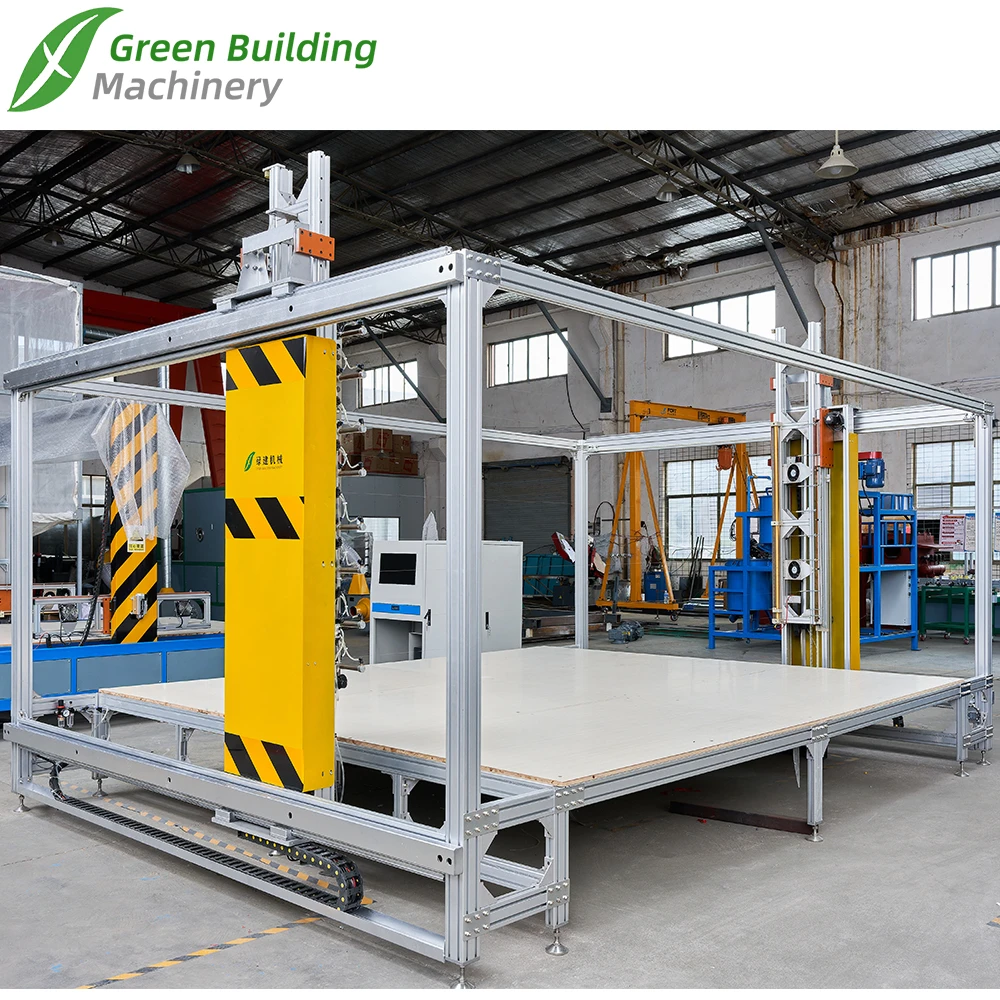

Aluminum Alloy 4m New Cutting Machine

This series of EPS two-dimensional CNC cutting machine is a large-scale electric heating cutting machine for cutting various specifications of foam-plastic board products. It is an auxiliary equipment for making large-sized foam plastic sheets in the bubble type product factory. The machine can completely realize straight line cutting and special-shaped cutting; the equipment can cut the car model, the lost mold, the aviation model, the movie props, and the required raw materials can be cut.

Contact Us

ping@cngreenindustry.com

Whatsapp: +86-18057925785

Specifications

Description		UNIT	DATA
Max.cutting Size		mm	4000×2500×1200
Cutting wire Material/Specification		mm	Φ0.4 G20Ni80
Step motor power		N.M	8.5
Total capacity		KW	18
Cutting speed range		m/min	0~10
Valtage regulator	Power	KVA	15
Valtage regulator	Voltage	V	0~220(ajustable)
Overal Size		mm	4800×3100×2600

Mechanical Characteristics

1. The main frame of the machine is made of material welding and various special connecting pieces, which is stable in motion and high in precision;

2. the machine uses X-direction servo motor, Y-direction stepper motor drive, smooth motion, free speed regulation, suitable for cutting special graphics requires non-stop shifting requirements, mechanical control accuracy is 0.5mm;

3. voltage regulation: This machine is equipped with a 15KW transformer, and through electronic voltage regulation, the voltage output is adjustable from 0-220V. 15 heating wires can be installed on the cutting frame, and 15 identical patterns or characters can be cut at the same time;

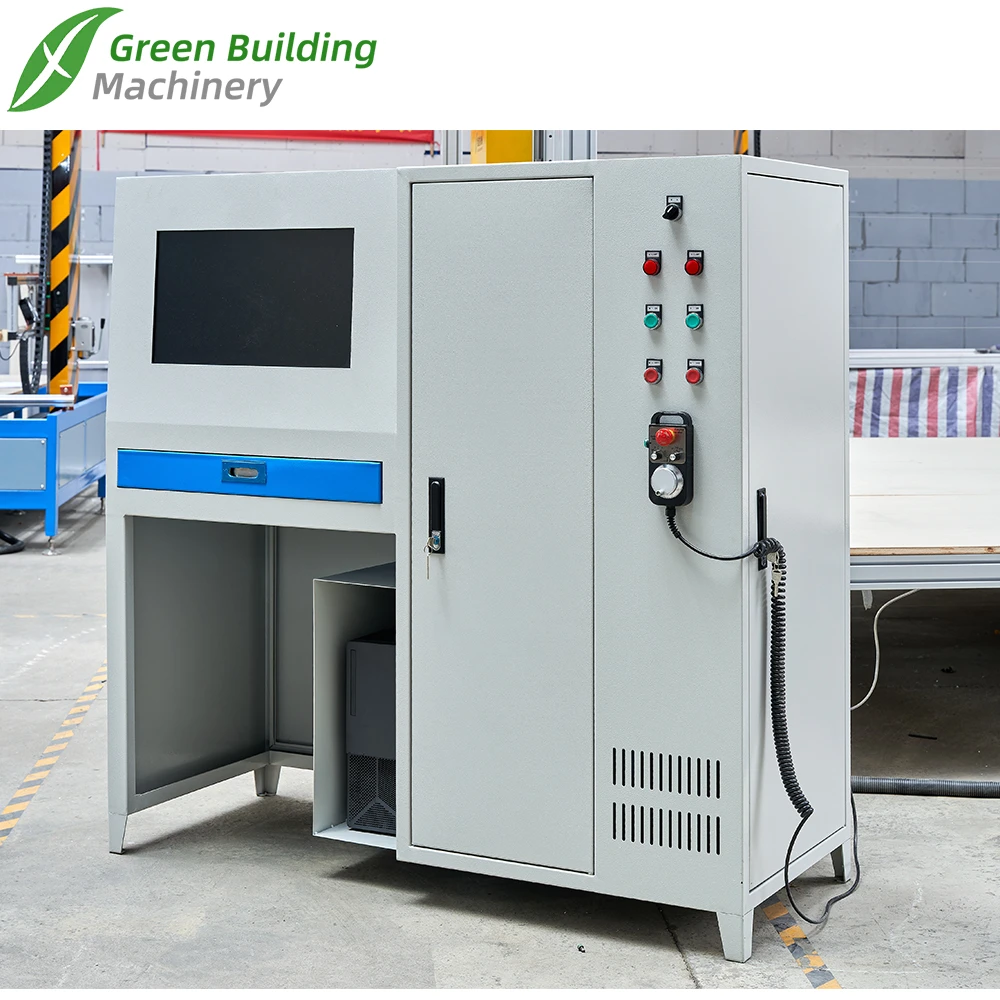

4. This machine adopts touch button input, and there are few operation keys. Simple patterns can also be entered directly through the controller. The display has cutting patterns, tracking cuts and more. The cutting speed is adjustable and the maximum spee d is 4000mm/min. The parameter setting is simple and convenient, and the device has a stroke protection function. When the running stroke exceeds the specified stroke, the automatic protection of the device stops.

Product Detail

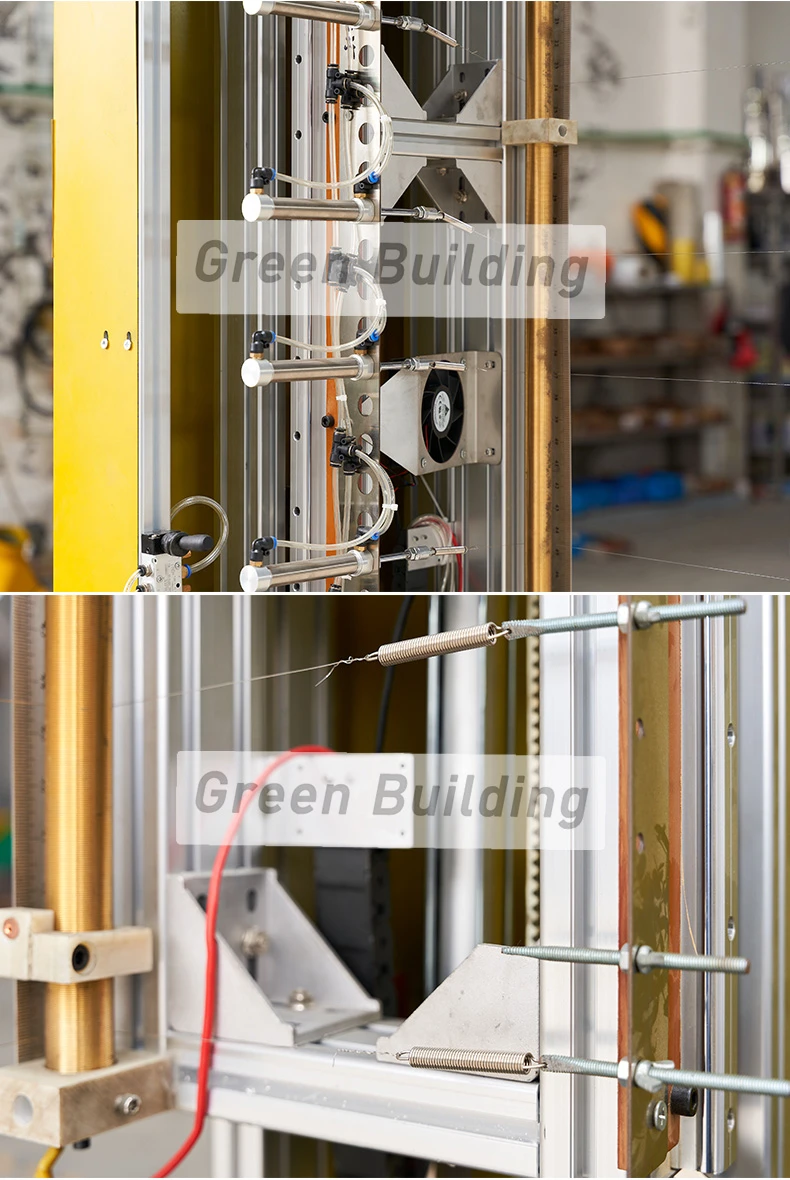

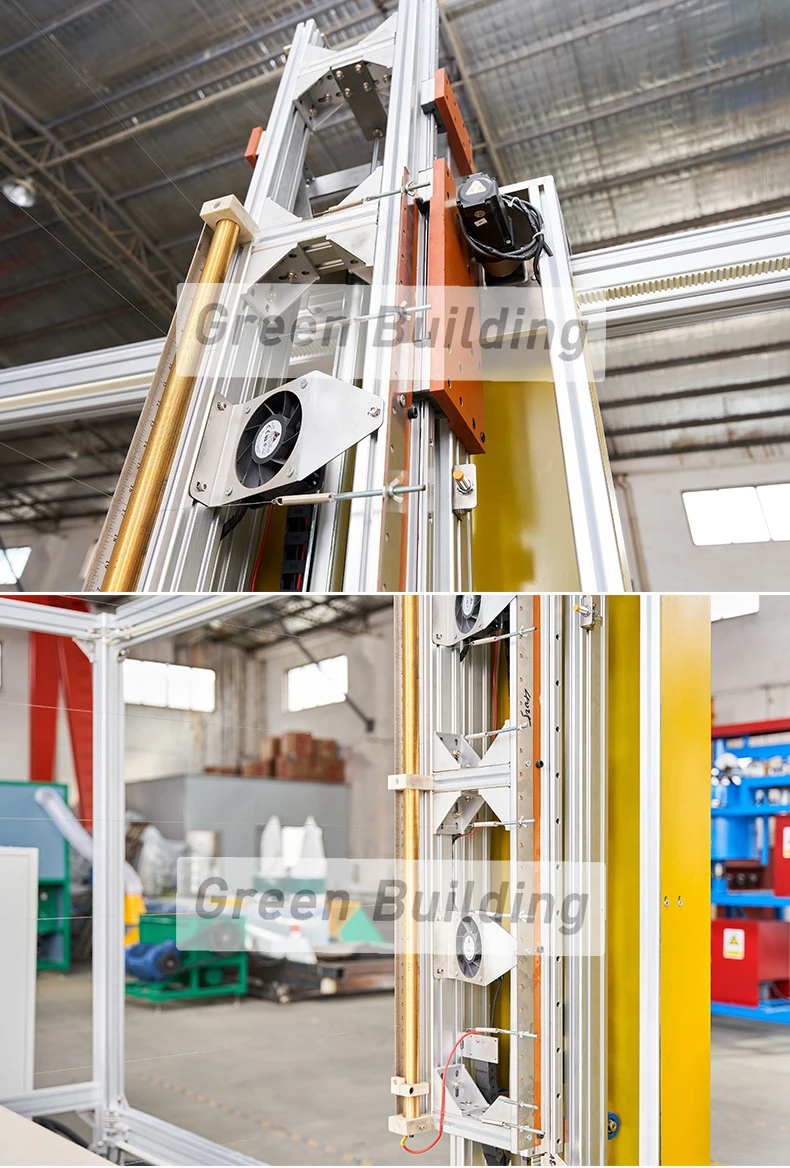

Aluminum Alloy 4m New Cutting Machine - Aluminum Alloy 4m New Cutting Machine 1 - Green Building EPS Machine
