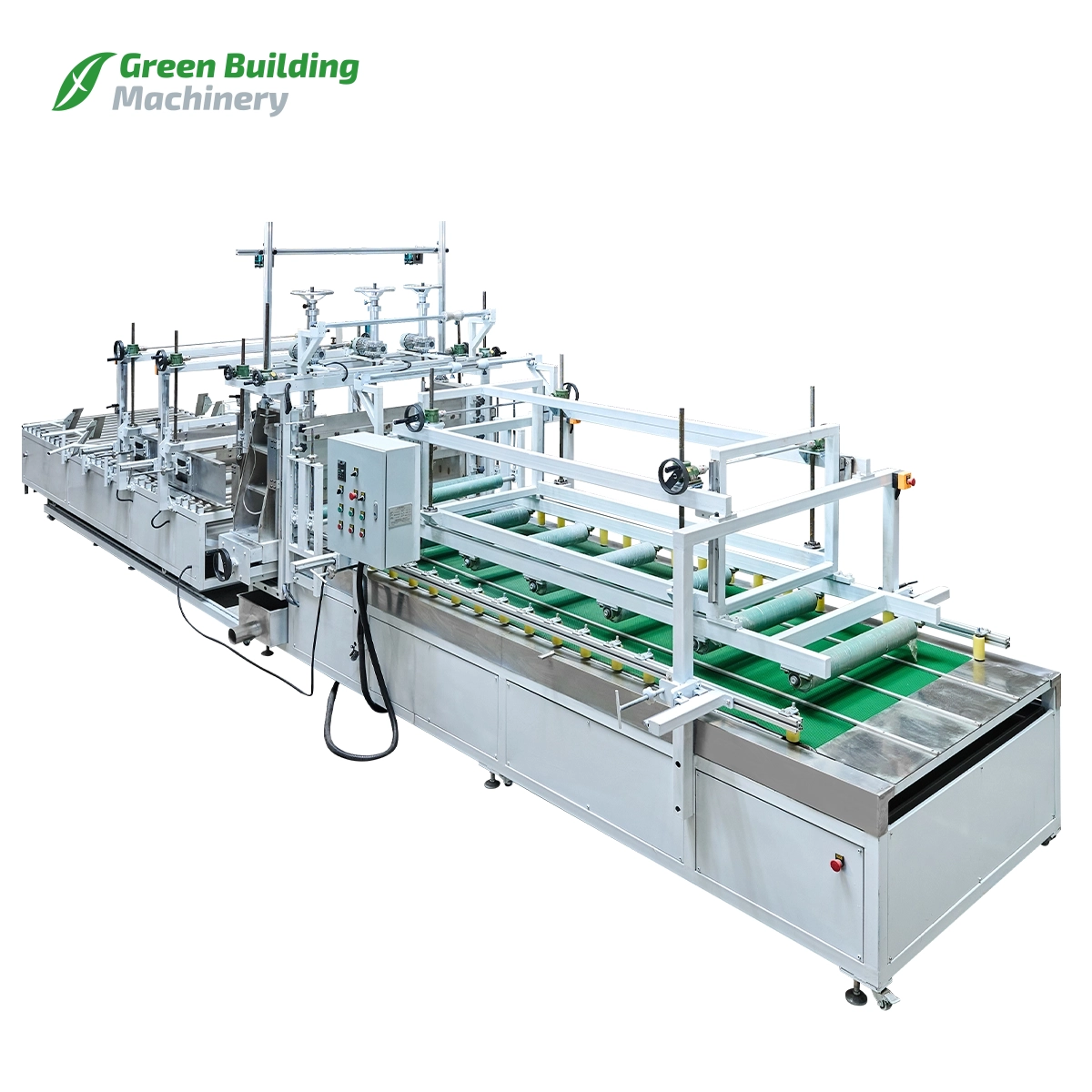

GB-C120 EPS coating machine is the latest equipment ofour company. It has the advantages of reasonable structure, high precision, advanced technology and easy operation.
Get in Touch
If there is a need and please send us an email or call.
Next-Gen Foam Insulation Board Plastering Machine
Specifications
| Description | Unit | Data |
| Max. Coating Width | mm | 1200 |
| Max. Coating Height | mm | 600 |
| Speed range | m/min | 4~10 |
| Total power | KW | 2.5 |
| Machine weight | Kg | 2500 |
Mechanical Characteristics
- The main frame of the machine is welded by connecting sections and various special connectors. It is stable in operation and high in accuracy.

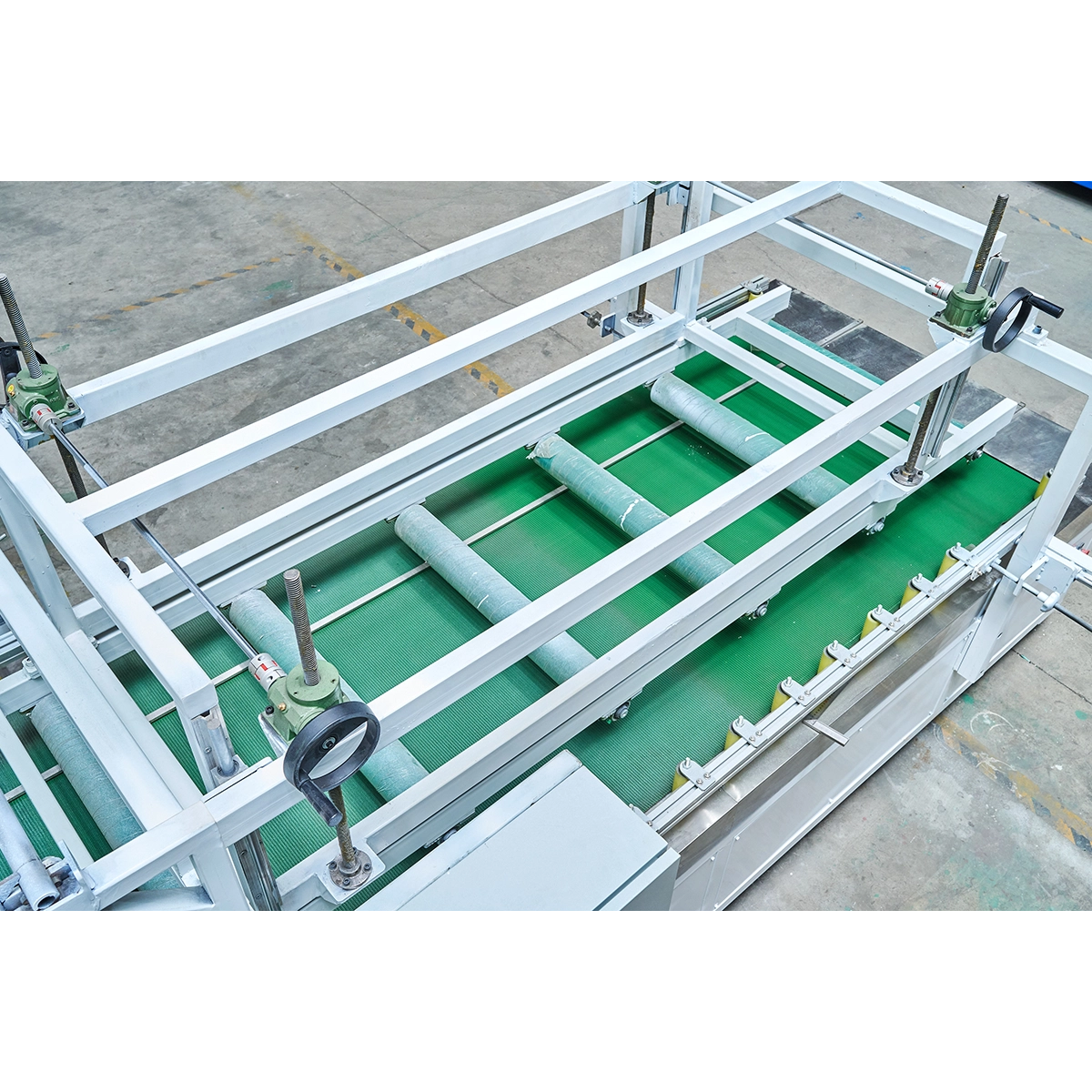

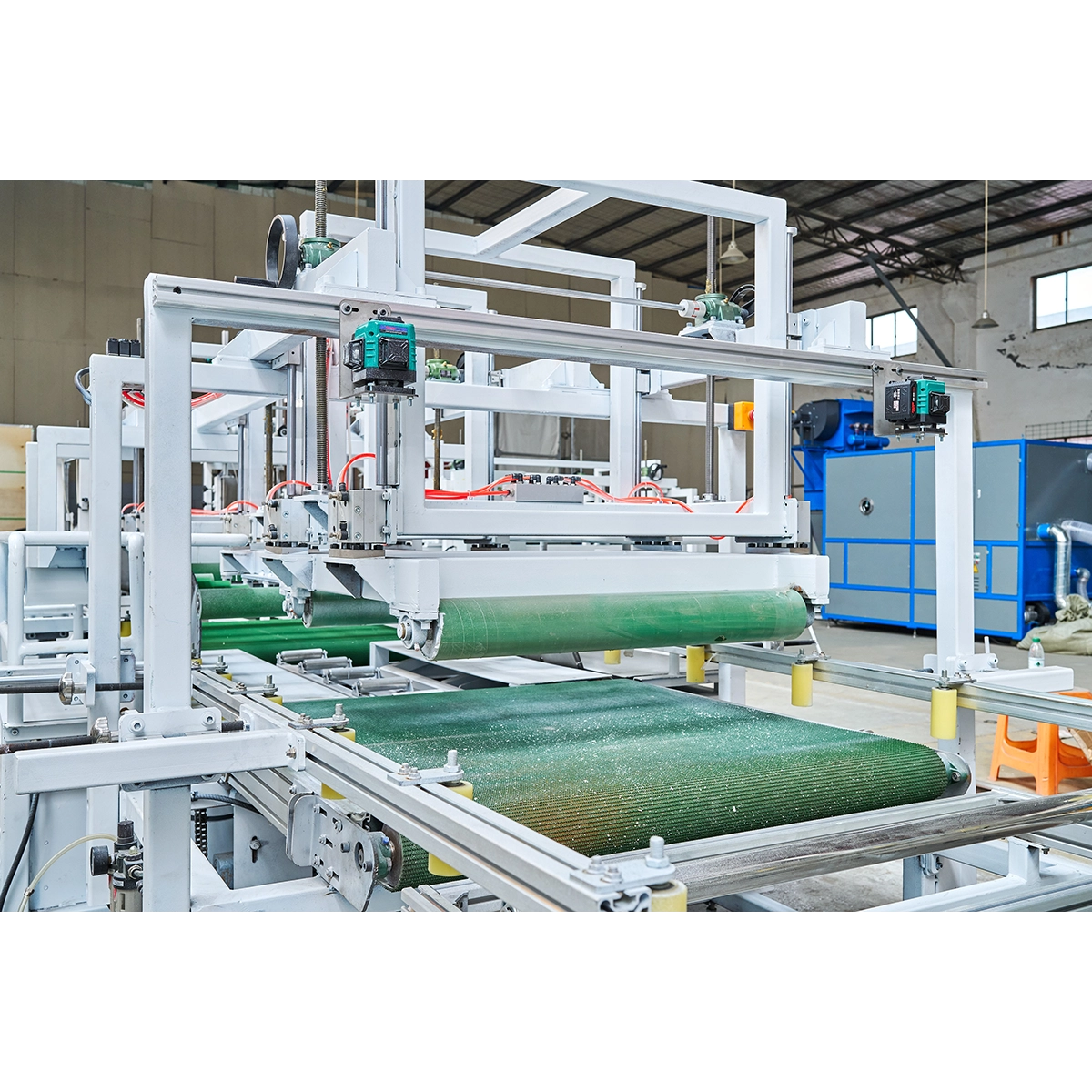

- the machine with 1200MM width PVC grass pattern belt drive, speed through the frequency converter can manual stepless speed control, about two pairs of pressure wheel height through screw up and down regulation.
- transition section roller is 304 stainless steel, water tray and conveyor belt, two side shields are made of304 stainless steel.
- Three new stirring motors and one vibration motor are added to the equipment in the plastering area.
Product Detail
