EPS CNC Five Dimensional Six Axis Engraving Machine GBEC-1325-5D6X This series of engraving machines is our company’s latest EPS decorative engraving equipment.
Reasonable structure, high precision, advanced technology, and easy operation. It is suitable for carving 3D animation animal figure decorative sculptures in scenic areas and parks.
If there is a need and please send us an email or call.

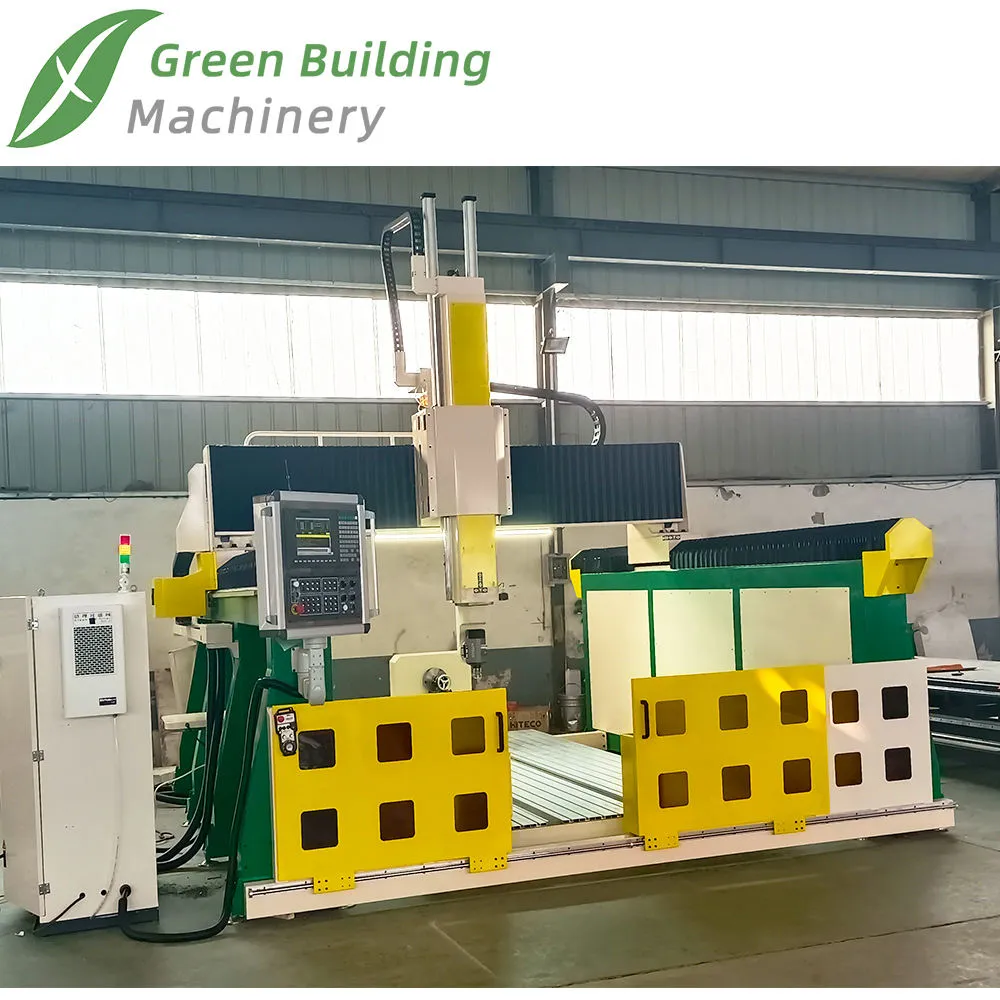

High Precision EPS Foam 3D Sculpture CNC Six Axis Engraving Machine
The characteristics of the machine：

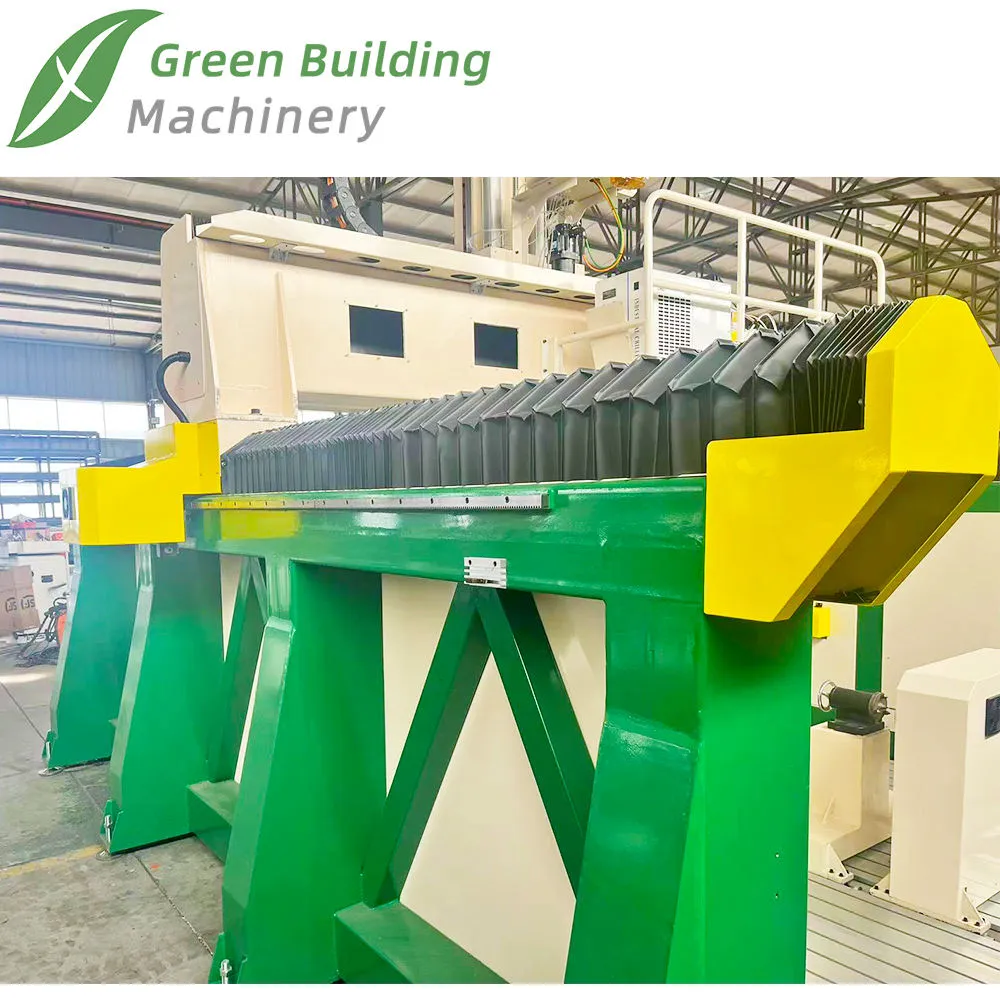

Bed Body: Our company’s Foam EPS Engraving Machine adopts national standard square tube welding for the entire bed body, which sets us apart from small manufacturers who use thin square tubes. On-site welding and assembly ensure the stability and longevity of equipment operation.
Machining: The Foam Engraving Molding Machine utilizes CNC six-meter five-sided milling for machining, with CNC grinding employed for the gantry side plate and motor seat. Bed precision machining ensures parallelism and verticality during operation, distinguishing us from small manufacturers using profile assembly or thin square tubes. Welding inorganic processing ensures precision, aligning with our pursuit of excellence.
Assembly: As a comprehensive CNC manufacturer with 19 years of experience, our assembly technicians have received formal training. All processes, including pre-inspection, assembly, debugging, quality inspection, and quality control, have passed ISO9001 quality system certification. Every step in the assembly process must strive for excellence.
Transmission System: The High Precision Six Axis Engraving Machine adopts Taiwan ball screws or German high-precision gear racks for transmission, ensuring precise operation without gaps and with low noise. In contrast, other companies generally use chains, synchronous belts, or ordinary fine-threaded screw rods, which offer a wider range of lifespan and accuracy but lack the precision of our transmission system.
Wire: Our company uses high flexibility shielding wire specially designed for CNC machining centers, suitable for a wide range of environments and offering a long service life. This wire ensures a more stable signal and unbiased transmission, essential for the operation of our 3D Six Axis EPS Foam Engraving Machine and 3D EPS Foam Engraving Machine.
| Item | Specification |
| Type: | GBEC-3020-5D6X |
| Max size (X,Y,Z) | 3000mm*2000mm*1300mm |
| Max product height | 1200mm |
| Max rotary diameter | DN 1000mmX2500 mm length |
| Max. Idling speed | X Y 20m/min ;Z 10m/min |
| Working speed | 15M/min |
| Transmission | X Y High precise gear and screw rack
Z axis Taiwan ball screw |
| Z axis Ball screw | HIWIN , Taiwan |
| Guide rail | Hiwin , Taiwan |
| Bearing | TBI Taiwan |
| Lubrication | Auto-Oil pump |
| Machine body | Heavy duty ,Separable ,Reinforce body structure, heat treatment , Machining |

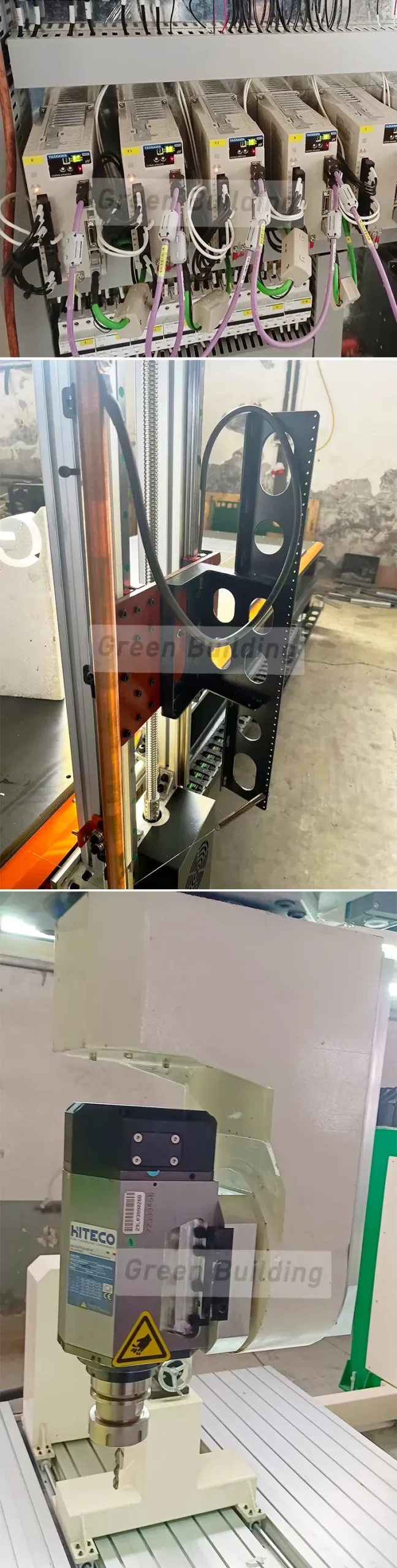

| Spindle | Italy HITEC 9KW spindle |
| Cooling system | Air cooling |
| Spindle rotating speed | 0-18000 r/min |
| Converter | Delta , Taiwan |
| Rotary drilling head motor A,C | Servo motor , 0.75KW X 2 Yaskawa |
| Five Axis rotary head | JYSK Rotary head X,Y,Z + Spindle（A &C AXIS）+ Rotary shaft |

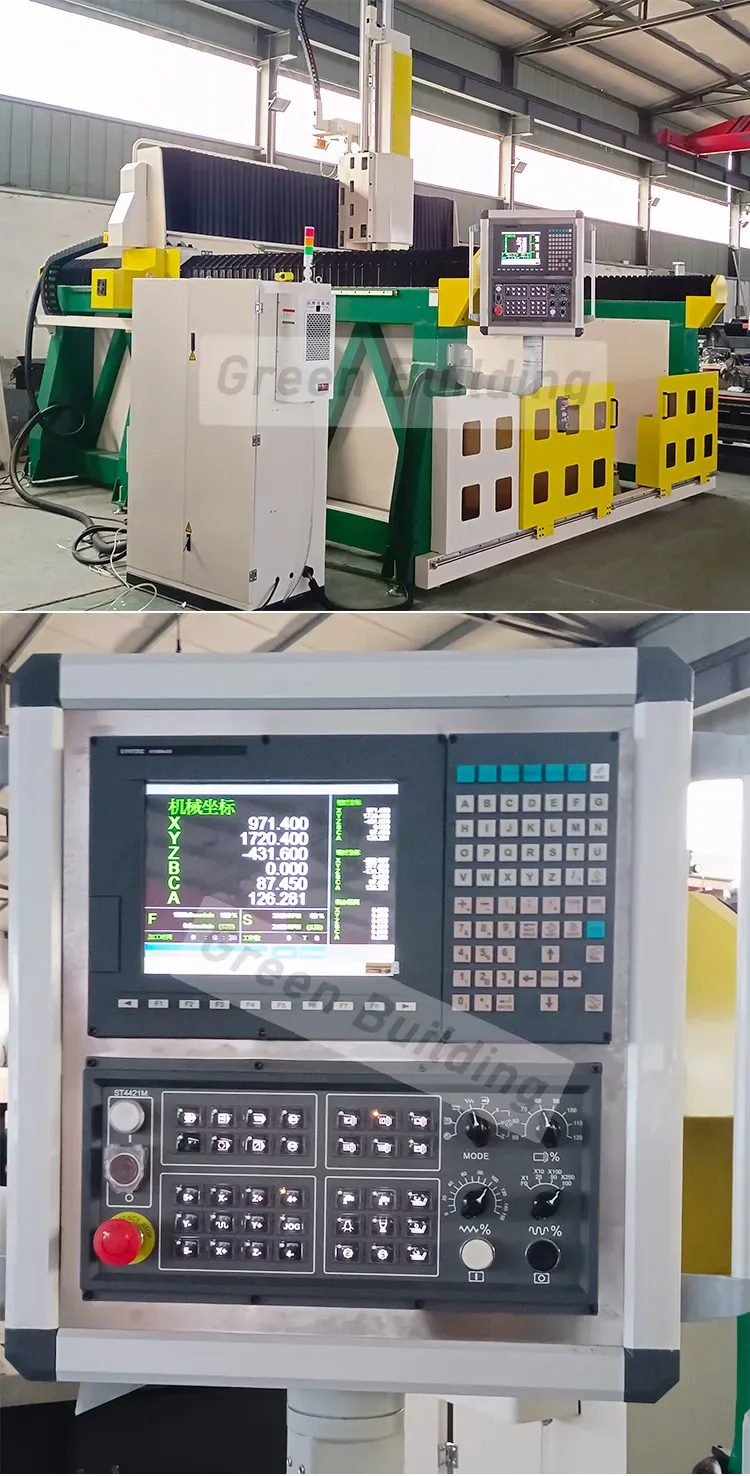

| Control system | Taiwan Syntec bus type control system,
5 axis controller . |
| Servo motor | Yaskawa , JAPAN 日本，安川
X,Y.Z All use 1.3KW Servo motor Z axis servo motor with break Rotary Shaft : Servo , 1.3 KW |
| Gear reducer | Japan Xinbao gear Reducer Rate: 1:8 |
| Automatic knife change system | Auto-knife change system With 8 unit tool storage |
| Electronic | Schneider |
| Cable | IGUS High flexibility cable (Germany) |
| Command | *NC, (G code) |
| Suitable drawing software | Sculpture, CAD POWERMILL ARTCAM ZBrush 3Dmax UG and so on |
| Power | 17 KW three phase |
| Outer size | 5070x4280x4300 mm |
| Total weight of machine | 5~6 tons |
For more information about any of our services, don’t hesitate to get in touch. Our team is always happy to provide information about EPS Industry products.
