EPS three table continuous cutting machine

EPS three table continuous cutting machine

This EPS cutting machine has quickly become a must-have in the market, receiving rave reviews from satisfied customers. Utilizing PLC and HMI technology for full automation control, this machine offers horizontal, vertical, and crosscut cutting capabilities. Each cutting voltage can be controlled separately, allowing for precise and efficient cutting. With the ability to hold 50-70 Hot cutting wires for horizontal cutting and 15 wires each for vertical and crossing cut cutting, this machine is versatile and powerful. But that’s not all – the Green Building Continuous Cutting Machine also features automatic wire setting for horizontal cutting and vibration cutting for both vertical and horizontal cuts, resulting in a 30% increase in cutting speed. It’s no wonder that this machine has quickly become the equipment of choice for large sheet metal factories. Don’t miss out on the opportunity to experience the efficiency and precision of the Green Building EPS Continuous Cutting Machine. Join the ranks of satisfied customers and revolutionize your cutting process today!

ping@cngreenindustry.com
Whatsapp: +86-18057925785

Product Detail

Model: GBSPC 200 -600C3 ( three tables )

1.1 basic technical data:

Item UNIT PARAMETER
Suitable for block size  mm 2000-6000*1300*1300
Min. Cutting thickness  mm 10
Cutting speed  m/min 0.5-1.5
Max. Wires in horizontal piece 42
Max. Wires in vertical cutting piece 10
Hot wire specification  mm 0.4-0.8
Connected load  Kw 24.8
Weight  Kg 2500-4500
Contour size MM 12000-24000*4500*2420
Auto wire setting in horizontal yes
Manually wire set in Vertical cut yes
Cross cutting wire set manually yes
Vibration wire cutting for horizontal yes
Vibration wire cutting for vertical yes
Specification:

Belt conveyor for movement

Capacity : 5-7 blocks per hour.

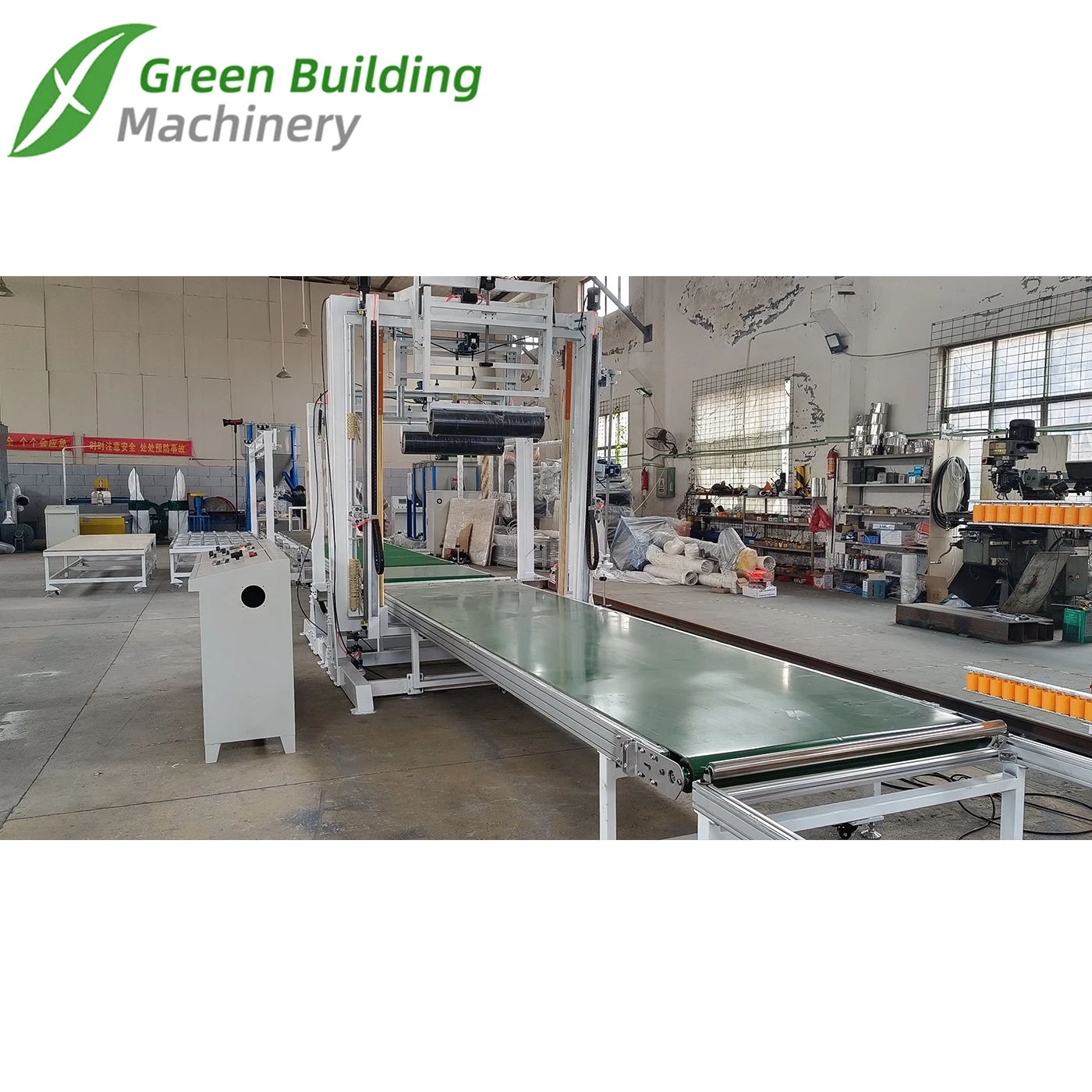

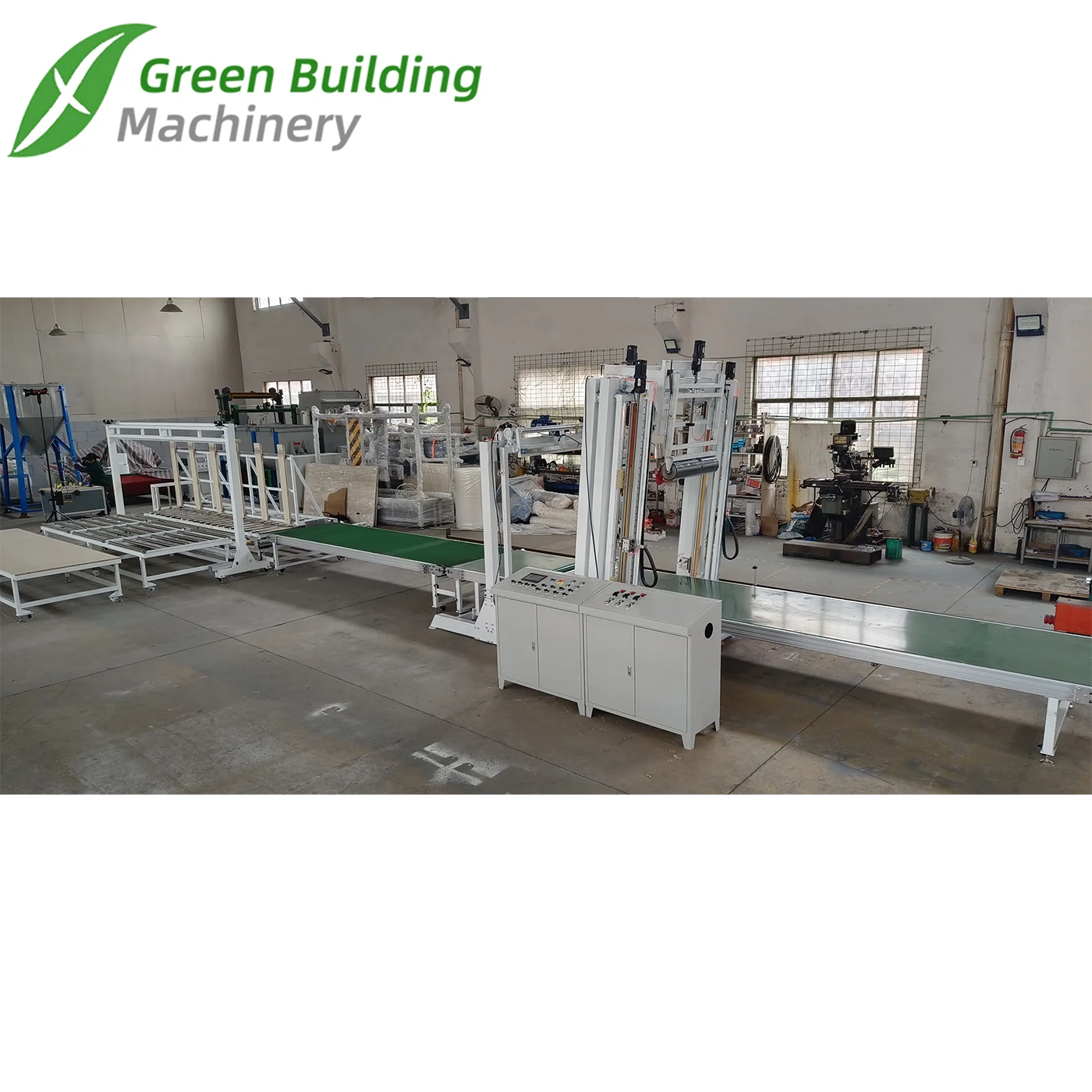

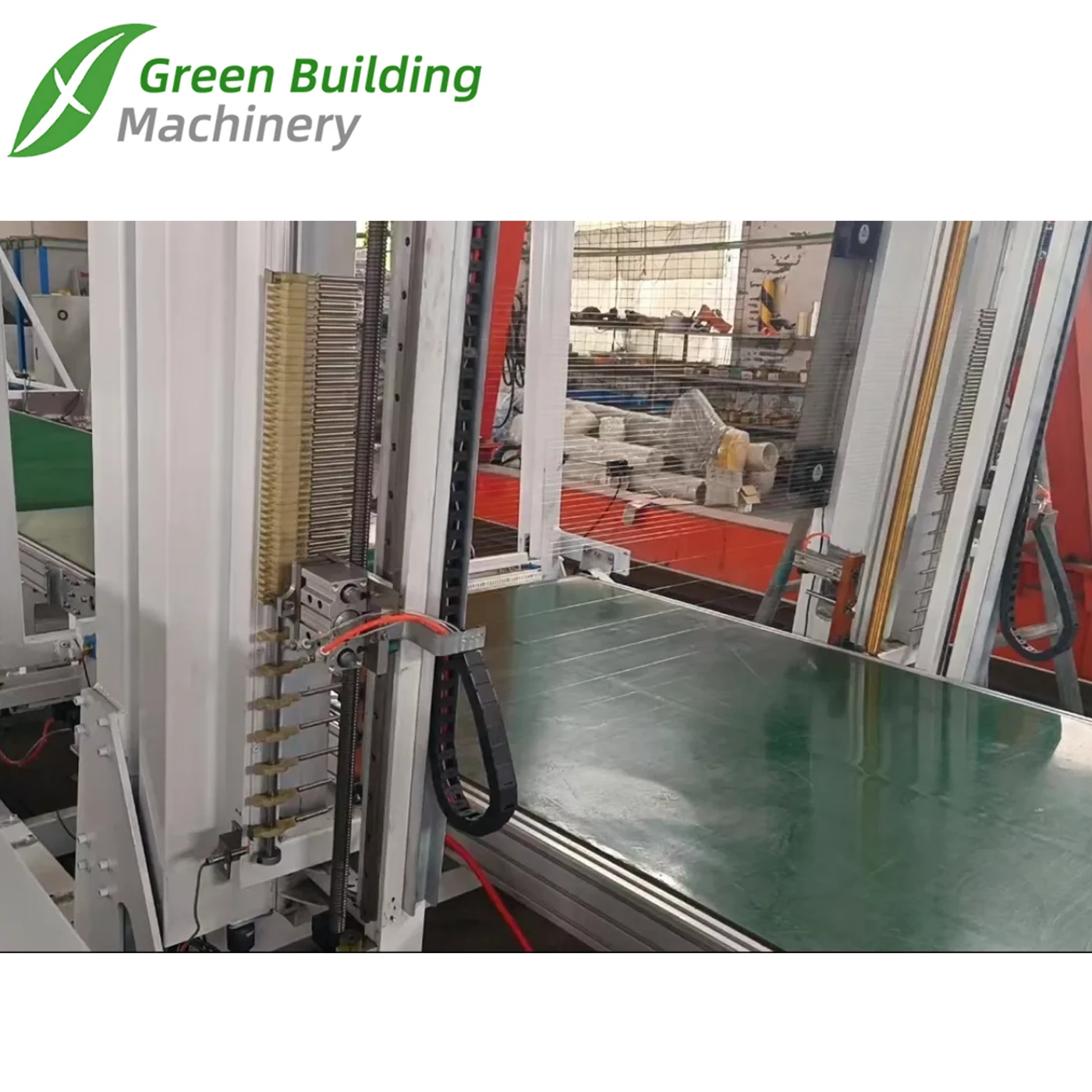

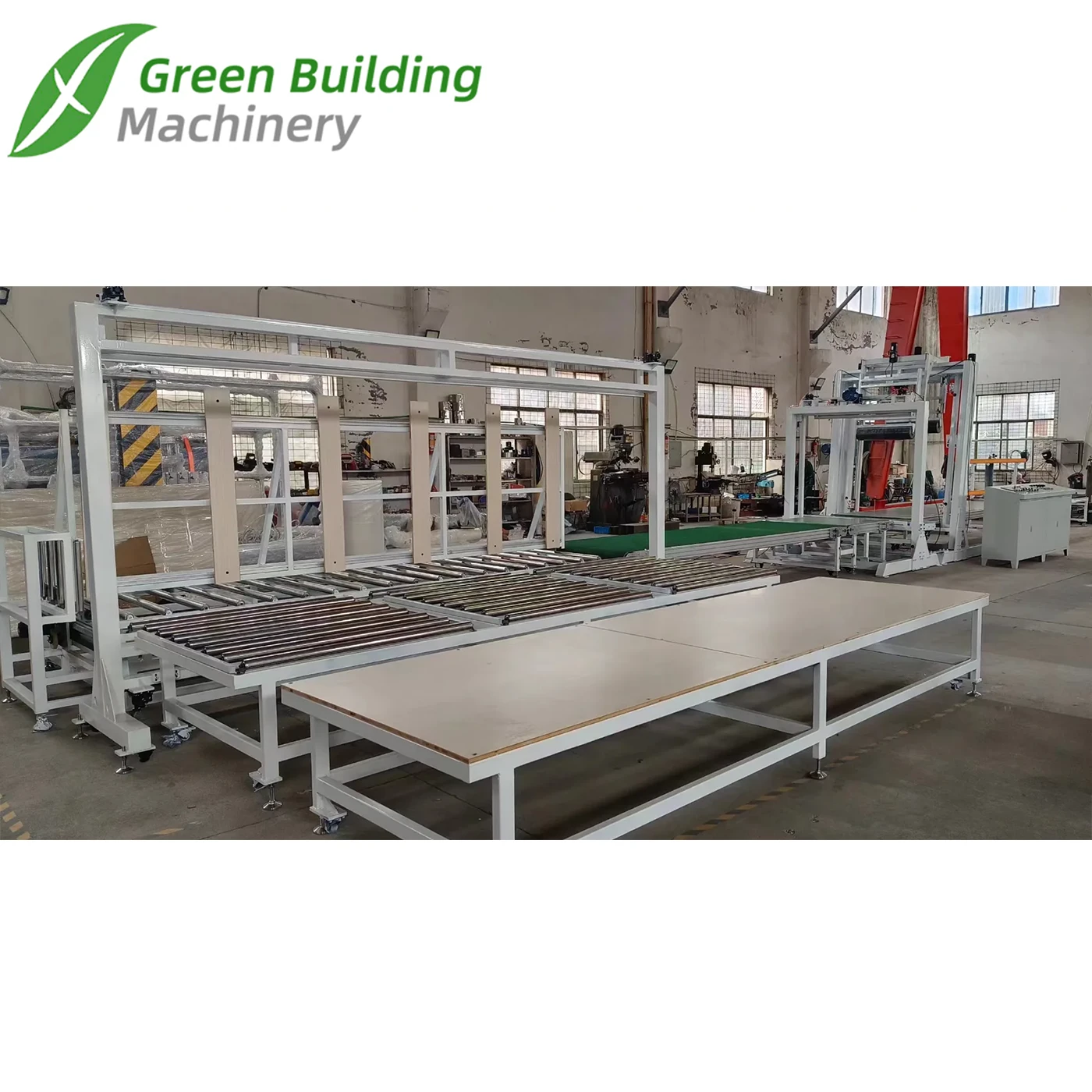

1.2 PICTURE OF MACHINE

EPS three table continuous cutting machine - Automatic three tables continuous EPS sheet Cutting Machine 2 - Green Building EPS MachineEPS three table continuous cutting machine - Automatic three tables continuous EPS sheet Cutting Machine 1.jpg - Green Building EPS MachineEPS three table continuous cutting machine - Automatic three tables continuous EPS sheet Cutting Machine 1 - Green Building EPS MachineEPS three table continuous cutting machine - Automatic three tables continuous EPS sheet Cutting Machine 2.jpg - Green Building EPS MachineEPS three table continuous cutting machine - Automatic three tables continuous EPS sheet Cutting Machine 3 - Green Building EPS Machine
